Phone apps

The two Android apps, Mailr and the Notes app, are served from the Mailr server itself. The setup guide's phone step and the Get the app page (/get-app) have links to the APKs on the server, with each app's version, size and SHA-256 checksum. A new release is published once and is then offered to every new phone.

App Downloaded from
Mailr /api/v1/app/mailr.apk
Notes /api/v1/app/notes.apk

No sign-in is required for the downloads and GET /api/v1/app/releases (the versions). On a phone, the link from the setup guide's code is opened before sign-in, and an APK holds no secrets.

While the server holds no APK of an app, phones are sent to the latest GitHub release. With MAILR_ANDROID_APK_URL, phones are sent to another address for the Mailr app. No version is then shown for it.

Publish a release

From the command line. Pipe the APK into the running app container:

docker compose exec -T app mailr app-publish --app mailr < app-release.apk
docker compose exec -T app mailr app-publish --app notes < notes-release.apk

With plain Docker, use docker exec -i <app container> mailr app-publish --app notes < notes-release.apk.

From the web. Open Settings → Admin → Phone apps and choose Publish APK beside the app.

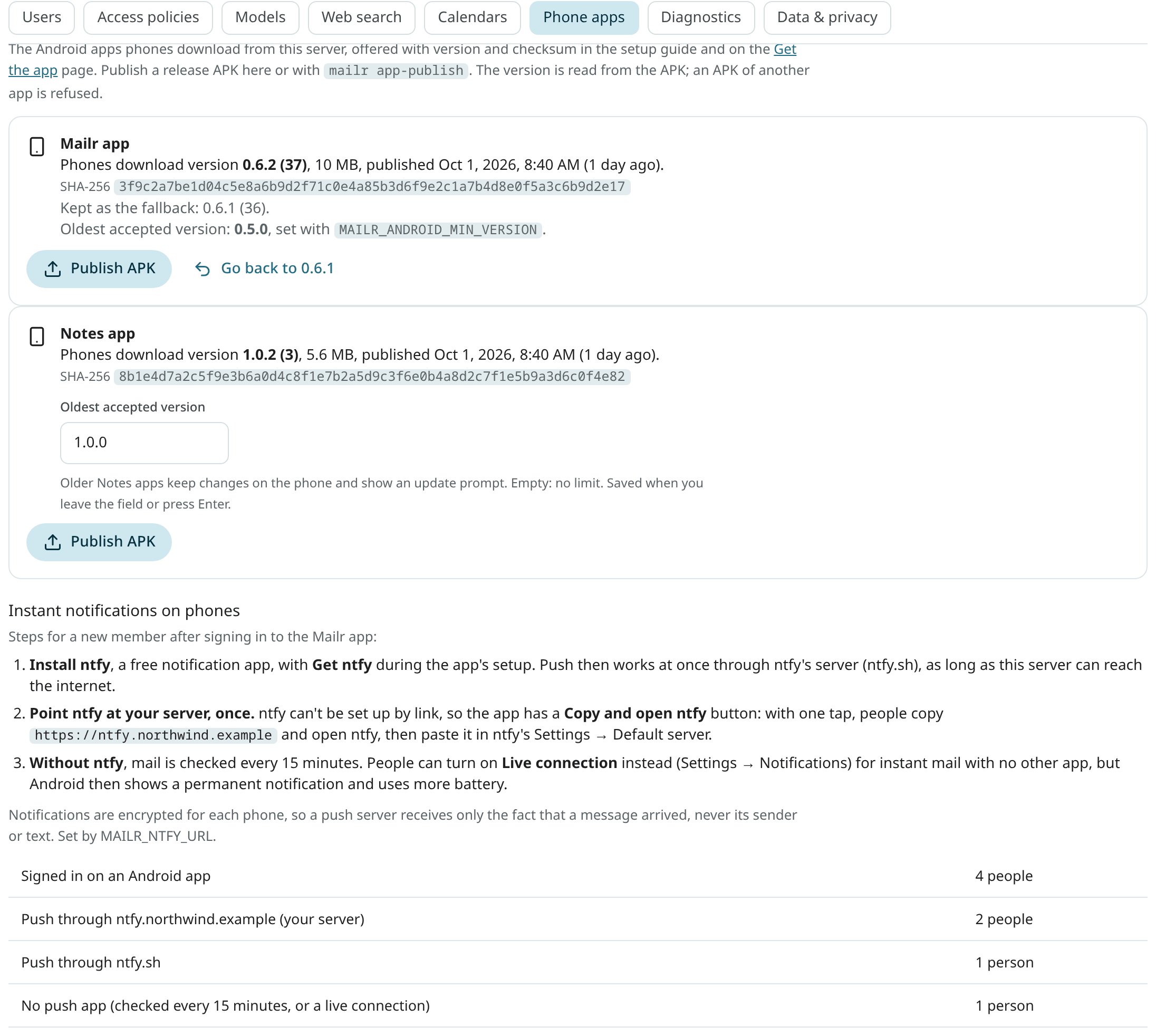

The Phone apps section of the Admin settings, with both apps published

Either way:

  1. the file is checked to be a signed APK;
  2. the package, versionName and versionCode are read from the APK's manifest;
  3. an APK is refused when its package is not the one for that app, for example the Notes APK sent as --app mailr, or when it is a debug build (its package ends in .debug);
  4. a lower versionCode than the one served is refused, unless you pass --allow-older;
  5. the replaced version is kept as the previous version, and the SHA-256 is computed.

Publishing the same file again changes nothing. Each publish is in the audit log as admin.app_publish, with the version and checksum. A publish from the command line is logged in the first admin's log, with the actor cli.

The oldest version phones may run

Old versions of the apps can be refused. On phones with an older version, a banner is shown with a request to update. Their changes stay on the phone and are sent after the update. The release list and the APK downloads stay open to them, so they can still fetch the new version.

  • Mailr app: the limit is the environment variable MAILR_ANDROID_MIN_VERSION (default 0.5.0). It is shown in the admin section but can be changed only in the server's environment.
  • Notes app: the limit is set in Settings → Admin → Phone apps, in the field Oldest accepted version under the Notes app. Type a version such as 1.1.0 and press Enter, or leave the field. Undo is offered in the toast. Empty means no limit, which is the default.

Publish the new version before you raise the limit, so that phones can download it. Each change is in the audit log as admin.app_min_version. On a server with several app processes, the new limit takes effect within 30 seconds.

Instant notifications on phones

Below the apps, the steps a new member takes to get instant notifications on Android are listed, with the number of people's phones that push through each server. See Member setup.

Go back to the previous version

The current and the previous version are swapped with mailr app-publish --app notes --rollback or Go back to … in the admin section. The previous version is then downloaded to phones again. When the current file is missing, the previous one is served.

File locations

The APKs are in the data volume, in <data dir>/app/<app>/: current.apk and previous.apk, each with a .json file that holds its version, size, checksum, publish time and who published it. A mailr.apk that was copied into <data dir>/app/ by hand is still served until the first publish, when it is kept as the previous version.

Custom builds

For a build with another applicationId, set the package each app must have in MAILR_ANDROID_PACKAGE_MAILR and MAILR_ANDROID_PACKAGE_NOTES.

To build both release APKs from source and publish them in one step, use tools/android-release from a checkout of the repository:

tools/android-release                          # build both release APKs
tools/android-release --publish my-docker-host # build, then publish both to the app container there

Give --publish an SSH host. The container is found by its Compose labels (project mailr, service app), and each APK is piped into mailr app-publish. With --no-build, the APKs that are already built are published. The release signing settings are described in Build a release from the source below.

Build a release from the source

From a checkout of the repository, the release APKs of both apps are built with tools/android-release (through android/build.sh), and with tools/android-release --publish <ssh-host> they are also handed to the Mailr server on that host. They are then downloaded to phones from that server. Release builds are signed with the key in android/keystore.properties (storeFile, storePassword, keyAlias, keyPassword; keep a backup, because updates must be signed with the same key). Without that file the APKs are unsigned, and they cannot be published. See the sections above for publishing an APK you already have.

The Notes app sign-in

Sign-in to the Notes app goes through the same OIDC client as the Mailr app, but the sign-in comes back to its own address, io.github.murtazanasir.mailr.notes:/oauth2redirect. Add that redirect URI to the client in your identity provider (in Pocket ID, for example, the client's callback URLs). To change it, for a build with another application id, set MAILR_OIDC_NATIVE_NOTES_REDIRECT.

The web links that open in the app are taken from android/deploy.properties when you build it (appLinkHosts, the same setting as the Mailr app's), and the server field's first value from defaultServer. Build both apps with android/build.sh assembleRelease; the Notes APK is android/notes/build/outputs/apk/release/notes-release.apk.

Notes and tables on phones

A copy of each user's notes, lists and tables is kept in the Android app, and only what changed is read (GET /api/v1/notes/sync and GET /api/v1/tables/sync). No setup is required on the server. Changes made offline are sent when the phone is back online, each one once.

Note reminders ring from the separate Notes app when it is installed on the phone, and otherwise from the Mailr app. With both apps on a phone, a reminder rings once.
