Writing Mode Overview¶

MAESTRO's Writing Mode is a powerful AI-assisted writing environment that combines intelligent research capabilities with a full-featured markdown editor. It enables you to create well-researched documents with proper citations from both your document library and web sources.

Core Features¶

Dual-Pane Interface¶

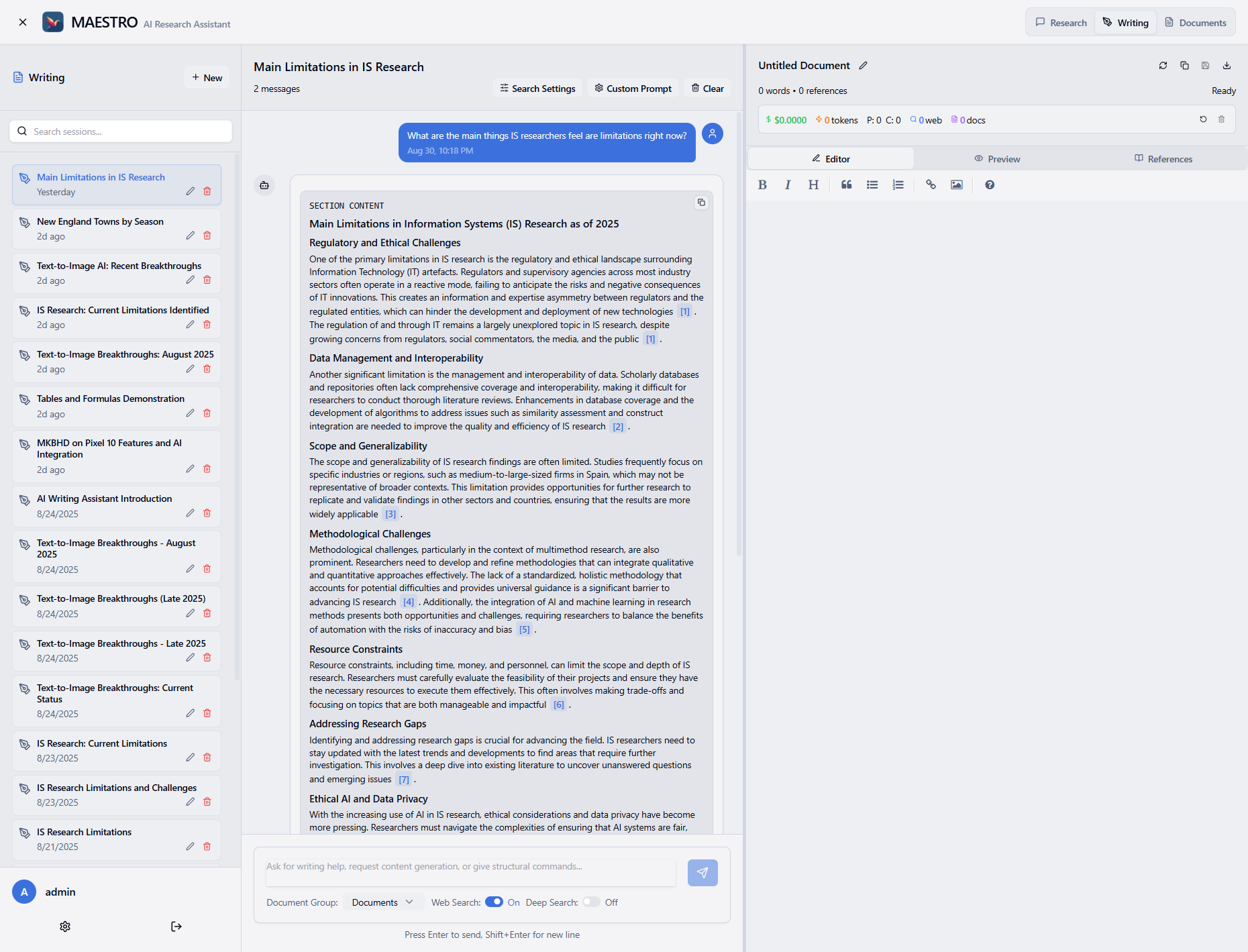

The Writing Mode interface is divided into two synchronized panels:

Left Panel - AI Writing Assistant - Interactive chat with the AI assistant for research and writing help - Access to your document collections and web search - Color-coded references distinguishing between document and web sources - Contextual awareness of your current draft

Right Panel - Markdown Editor - Full-featured markdown editor with live preview - Support for LaTeX formulas and mathematical notation - Tables, code blocks, and structured formatting - Auto-save functionality preserving your work

Getting Started¶

Starting a Writing Session¶

There are two ways to begin writing in MAESTRO:

Option 1: New Writing Session 1. Navigate to the Writing tab in MAESTRO 2. Click "+ New" to create a new writing session 3. Your session will appear in the left sidebar with an auto-generated title

Option 2: Continue from Research 1. Complete a research mission in the Research tab 2. Click "Continue Writing" in the Draft tab 3. Your research draft transfers automatically to the writing workspace 4. Associated document groups are preserved for continued reference

Configuring Your Research Sources¶

Before starting your research, configure your sources:

Document Collections - Select a document group from your library to search within - The assistant will search only within the selected collection - Leave unselected to disable document search

Web Search - Toggle "Enable Web Search" to search the internet - The assistant will find and cite relevant web sources - Web sources appear with distinct colored references

Research and Writing Workflow¶

1. Setting Up Search Parameters¶

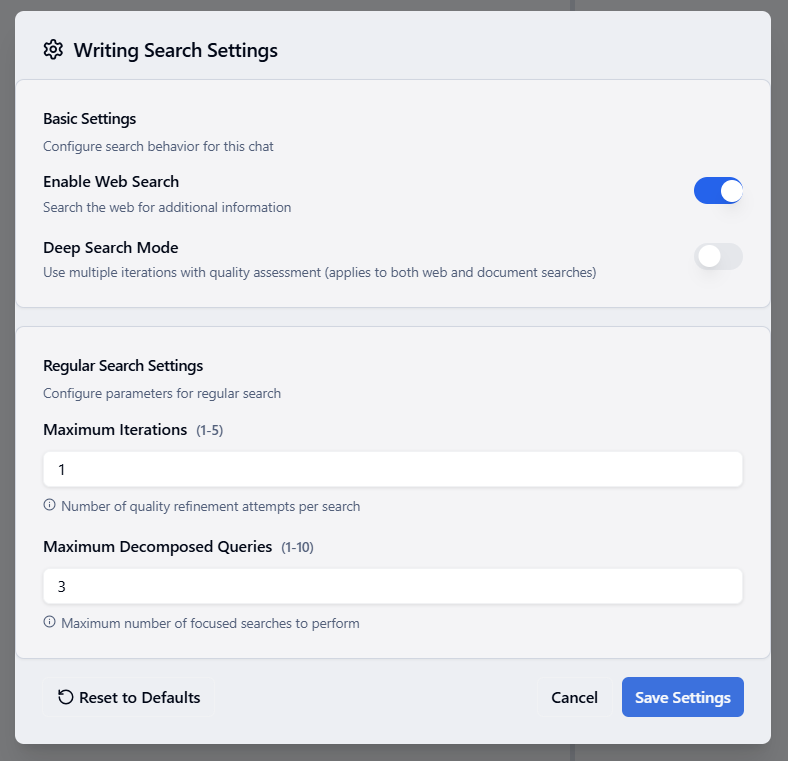

Click the gear icon to access Writing Search Settings:

Basic Settings - Enable Web Search: Toggle web search on/off - Deep Search Mode: Use multiple iterations with quality assessment for thorough research

Regular Search Settings - Maximum Iterations (1-5): Number of quality refinement attempts per search - Maximum Decomposed Queries (1-10): Number of focused searches to perform

For quick responses, use minimal settings (1 iteration, 3 queries). For comprehensive research, increase both values.

2. Adding Custom Instructions¶

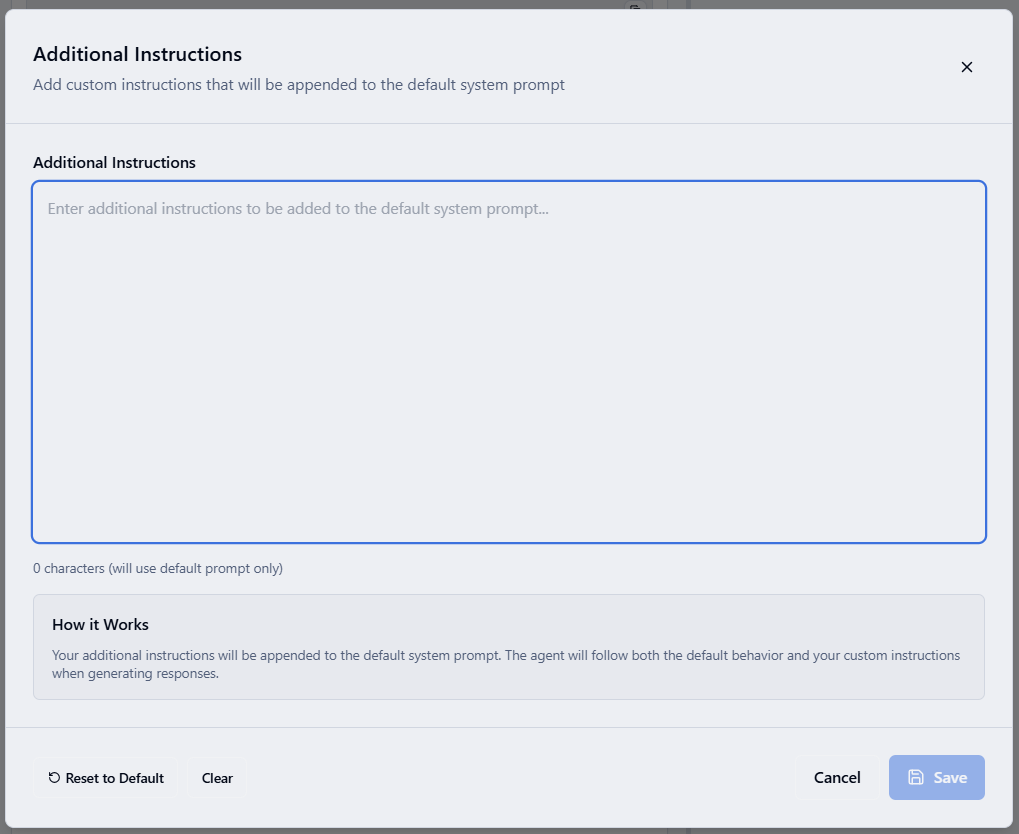

Click "Additional Instructions" to provide persistent context: - Writing style preferences (academic, technical, casual) - Target audience specifications - Tone and formatting requirements - Any specific guidelines for the assistant

These instructions are appended to every request, ensuring consistent responses throughout your session.

3. Interacting with the Assistant¶

The AI assistant can help with:

Research Tasks - Finding information from your documents - Searching the web for current information - Fact-checking and verification - Gathering supporting evidence

Writing Support - Generating content based on research - Improving and revising text - Creating structured outlines - Suggesting transitions and connections

Citation Management - Automatically citing sources used - Color-coding references by type - Providing clickable reference links - Maintaining a bibliography

4. Understanding References¶

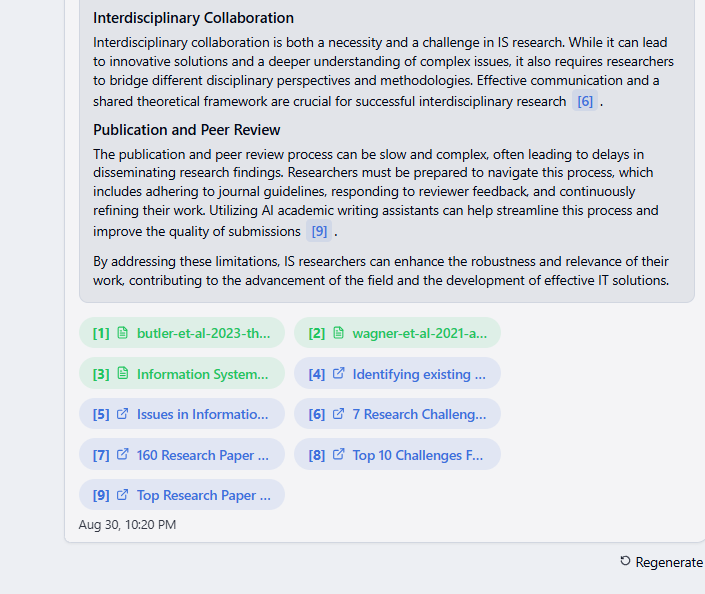

The assistant provides numbered references with intuitive visual indicators: - Document references 📄 [1] [2]: Sources from your document collection, clickable to open the document viewer - Web references 🌐 [3] [4]: External web sources, clickable to open in a new browser tab - Each reference displays its source title for quick identification - All sources are listed at the end of each response with full details

Editor Features¶

Markdown and LaTeX Support¶

The editor supports full markdown formatting plus LaTeX:

Tables

| Name    | Age | Occupation        |
|---------|-----|-------------------|
| Alice   | 30  | Software Engineer |
| Bob     | 25  | Data Analyst      |
| Charlie | 35  | Project Manager   |

Mathematical Formulas - Inline math: $x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}$ - Display math:

$$
(a + b)^n = \sum_{k=0}^{n} \binom{n}{k} a^{n-k} b^k
$$

Code Blocks

def calculate_area(radius):
    return 3.14159 * radius ** 2

Editor Toolbar¶

The editor provides quick formatting options: - Text Formatting: Bold, Italic, Strikethrough - Headers: H1-H6 heading levels - Lists: Ordered and unordered lists - Quotes: Block quotes for citations - Links: Hyperlink insertion - Images: Image embedding - Code: Inline code and code blocks - Tables: Table insertion wizard

Real-time Preview¶

Toggle between: - Editor View: Write and edit your content - Preview View: See rendered markdown with formatted text, tables, and formulas - Split View: Edit and preview side-by-side

Advanced Features¶

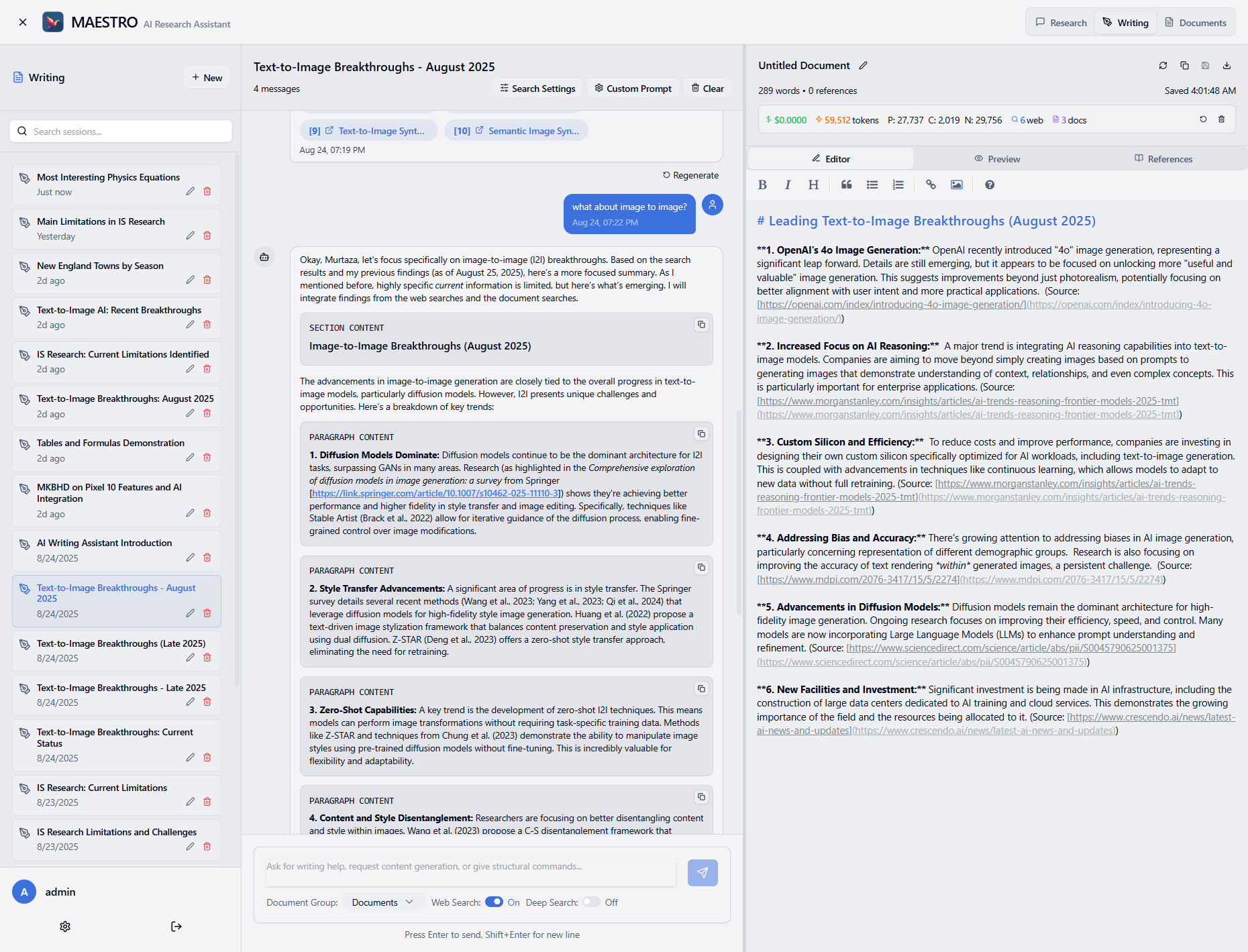

Document Context Awareness¶

The writing assistant has access to your current draft content, allowing it to: - Provide suggestions based on what you've written - Maintain consistency in tone and style - Help with transitions between sections - Suggest improvements to existing content

Session Persistence¶

Your writing sessions are automatically saved with: - Complete chat history - All draft versions - Search settings - Custom instructions - Referenced sources

Export Options¶

Export your completed documents as: - Markdown (.md): Preserve all formatting - PDF: Professional presentation with rendered LaTeX - HTML: Web-ready with embedded styles - Word (.docx): For collaboration

Best Practices¶

Effective Research Queries¶

1. Be Specific: "Explain the economic impact of climate change on agriculture in Southeast Asia"
2. Request Evidence: "Find statistics about renewable energy adoption rates with sources"
3. Ask for Structure: "Create an outline for a report on machine learning in healthcare"

Optimizing Search Performance¶

For Quick Answers - Set iterations to 1 - Use 3 decomposed queries - Disable deep search mode

For Comprehensive Research - Set iterations to 3-5 - Use 5-10 decomposed queries - Enable deep search mode - Select relevant document groups

Managing Long Documents¶

1. Work in Sections: Focus on one section at a time
2. Regular Saves: The editor auto-saves every 30 seconds
3. Use Headers: Organize with clear section headers
4. Reference Tracking: Add citations as you write

Tips for Success¶

Research Phase¶

• Start with broad searches to understand the topic
• Narrow down to specific aspects
• Verify important facts with multiple sources
• Save important findings in your draft immediately

Writing Phase¶

• Use the assistant to expand bullet points
• Request different perspectives on arguments
• Ask for transitions between paragraphs
• Get help with introductions and conclusions

Revision Phase¶

• Request clarity improvements
• Check for logical flow
• Verify all citations are included
• Ensure consistent tone throughout

Common Use Cases¶

Academic Writing¶

• Research papers with proper citations
• Literature reviews with source synthesis
• Thesis chapters with evidence support
• Grant proposals with data backing

Professional Documents¶

• Technical documentation with accuracy
• Business reports with market data
• White papers with industry research
• Case studies with real examples

Content Creation¶

• Blog posts with fact-checking
• Articles with expert sources
• Marketing content with statistics
• Educational materials with references

Troubleshooting¶

Search Issues¶

• No results found: Check document group selection and search settings
• Irrelevant results: Refine your query to be more specific
• Slow searches: Reduce the number of iterations and queries

Editor Problems¶

• Formatting not showing: Check preview mode is enabled
• LaTeX not rendering: Verify formula syntax is correct
• Lost work: Check auto-save status and session history

Assistant Responses¶

• Generic answers: Add more specific instructions
• Missing citations: Enable appropriate search sources
• Wrong context: Ensure document group is correctly selected

Summary¶

MAESTRO's Writing Mode streamlines the research and writing process by: - Providing intelligent research assistance with automatic citations - Offering a powerful markdown editor with LaTeX support - Maintaining context awareness throughout your writing session - Supporting both document library and web research - Enabling customization through search settings and instructions

Start with simple queries, gradually explore advanced features, and let the AI assistant help you create well-researched, properly cited documents efficiently.
