AI Provider Configuration

Configure language model providers to power MAESTRO's research and writing capabilities.

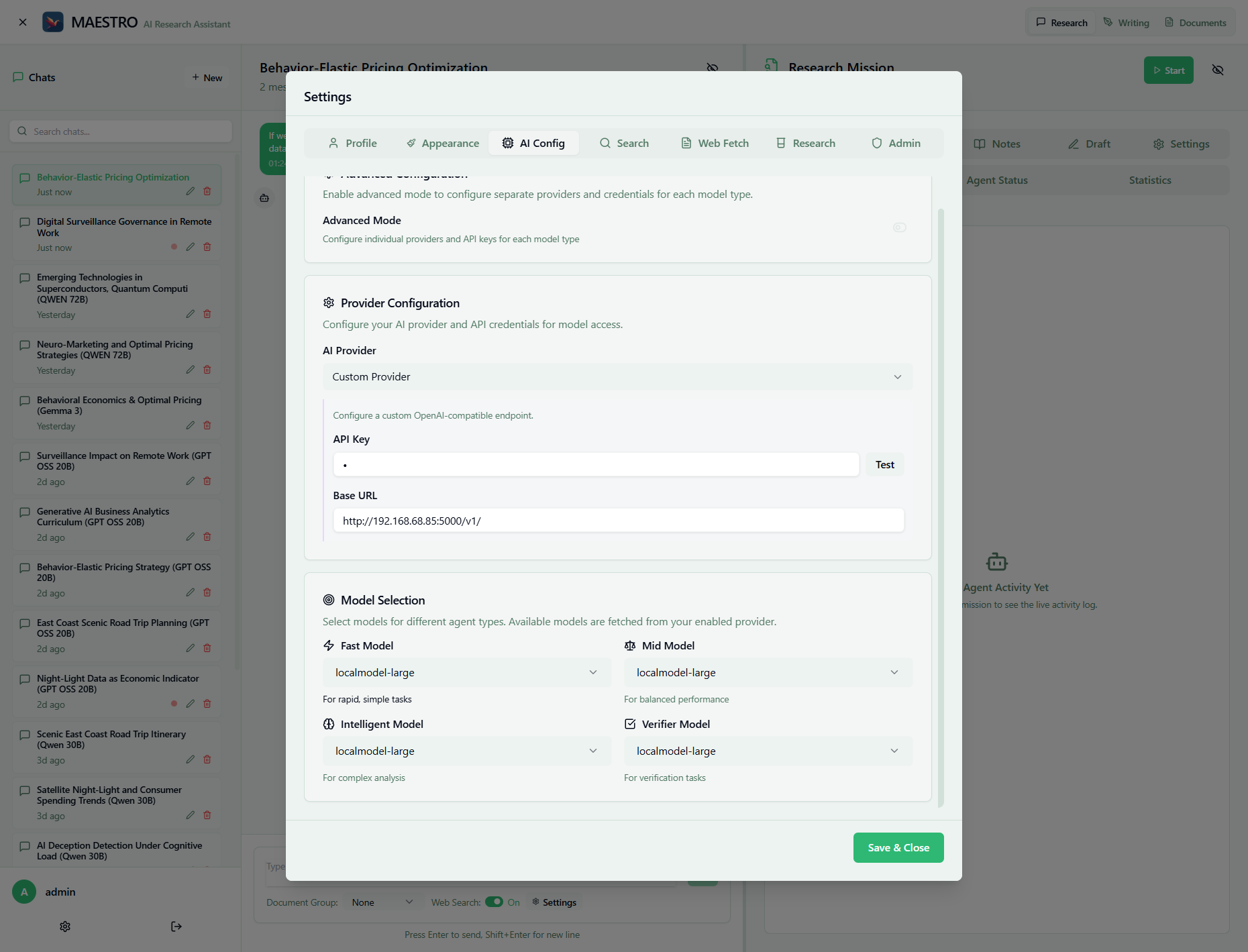

AI Configuration Interface

Overview

MAESTRO supports multiple AI providers and allows flexible configuration:

  • Advanced Mode: Configure separate providers and credentials for each model type
  • Custom Provider: Connect to any OpenAI-compatible API endpoint
  • Local LLMs: Connect to self-hosted models via custom endpoints

Supported Providers

Connect to any OpenAI-compatible API endpoint. This is the most flexible option.

Configuration:

  • Provider: Select "Custom Provider" from dropdown
  • API Key: Enter your API key (or leave blank for local models)
  • Base URL: Your endpoint URL

Common Endpoints:

  • OpenRouter: https://openrouter.ai/api/v1/
  • OpenAI: https://api.openai.com/v1/
  • Local Ollama: http://host.docker.internal:11434/v1/ or check your ollama config
  • Local vLLM: http://host.docker.internal:8000/v1/ or check your vllm config

OpenRouter

Access to 100+ models through a unified API.

Setup:

  1. Select "Openrouter" as the AI Provider
  2. API Key: Get from OpenRouter Dashboard
  3. Base URL: https://openrouter.ai/api/v1/
  4. Click "Test" to verify and load models

Available Models:

  • Claude models (Anthropic)
  • GPT models (OpenAI)
  • Llama models (Meta)
  • Mistral models
  • Many more open and commercial models

Pricing: Pay-per-token, varies by model. Check OpenRouter Pricing

OpenAI

Direct access to OpenAI's GPT models.

Setup:

  1. Select "OpenAI" as the AI Provider
  2. API Key: Get from OpenAI Platform
  3. Base URL: https://api.openai.com/v1/
  4. Click "Test" to verify and load models

Available Models:

  • gpt-5-chat
  • gpt-5-mini
  • gpt-5-nano
  • gpt-4o
  • gpt-4o-mini

Pricing: Check OpenAI Pricing

Configuration Mode

Advanced Configuration

MAESTRO uses Advanced Mode to configure separate providers and credentials for each model type:

  1. Check "Advanced Configuration" checkbox
  2. For each model type (Fast, Mid, Intelligent, Verifier):
    • Select "Custom Provider" from dropdown
    • Enter API key (if required)
    • Enter base URL for your provider
    • Click "Test" to load available models
    • Select model from dropdown
  3. Click "Save & Close" to apply settings

Example Setup:

  • Fast Model:

    • Provider: Custom Provider
    • Base URL: https://openrouter.ai/api/v1/
    • Model: meta-llama/llama-3.2-3b-instruct

  • Mid Model:

    • Provider: Custom Provider
    • Base URL: https://openrouter.ai/api/v1/
    • Model: anthropic/claude-3.5-haiku

  • Intelligent Model:

    • Provider: Custom Provider
    • Base URL: https://api.openai.com/v1/
    • Model: gpt-5-chat-latest

  • Verifier Model:

    • Provider: Custom Provider
    • Base URL: http://host.docker.internal:11434/v1/
    • Model: llama3.2 (local)

Model Types and Agent Usage

MAESTRO uses four model categories, automatically assigned to different agents and tasks:

Fast Model

Agents using Fast Model:

  • Planning Agent - Creates research plans and outlines
  • Note Assignment Agent - Distributes information to sections
  • Query Strategy Agent - Determines search strategies
  • Router Agent - Routes tasks to appropriate agents

Use Cases: Quick decisions, simple formatting, routing logic

Recommended Models: Smaller, faster models (GPT-4o-mini, Claude Haiku, GPT-5-nano)

Mid Model (Default)

Agents using Mid Model:

  • Research Agent - Main research and information gathering
  • Writing Agent - Document composition
  • Simplified Writing Agent - Streamlined writing tasks
  • Messenger Agent - User interaction and messaging
  • Default fallback - Any undefined agent modes

Use Cases: General research, standard writing, analysis, user interaction

Recommended Models: Balanced models (GPT-5-mini, Claude-4-Sonnet, Qwen-2.5-72b-instruct)

Intelligent Model

Agents using Intelligent Model:

  • Reflection Agent - Critical analysis and feedback
  • Query Preparation Agent - Complex query reformulation
  • Research Agent (critical tasks) - When explicitly needed for complex analysis

Use Cases: Deep analysis, complex reasoning, quality assessment

Recommended Models: Most capable models (GPT-5-chat, Claude-4.1-Opus, Qwen3-235b-a22b-2507)

Verifier Model

Agents using Verifier Model:

  • Verification tasks - Fact-checking and validation
  • Quality control - Ensuring accuracy of information

Use Cases: Fact verification, consistency checking

Recommended Models: Accurate, reliable models (typically same as Intelligent)

Local LLM Setup

Using Ollama

  1. Install and run Ollama:

    # Install Ollama
curl -fsSL https://ollama.com/install.sh | sh

# Pull a model
ollama pull llama2

# Run Ollama server
ollama serve

  2. Configure in MAESTRO:

    • Provider: Custom Provider
    • API Key: (use dummy unless you configured authentication)
    • Base URL: http://host.docker.internal:11434/v1/
    • Click "Test" to load available models
    • Model: Select from dropdown (e.g., "llama3.2", "mistral")

Using LM Studio

  1. Start LM Studio server on port 1234
  2. Configure in MAESTRO:
    • Provider: Custom Provider
    • API Key: (use dummy unless you configured authentication)
    • Base URL: http://host.docker.internal:1234/v1/
    • Click "Test" to verify connection

Using vLLM

  1. Start vLLM server:

       python -m vllm.entrypoints.openai.api_server \
      --model "/home/user/models/Qwen_Qwen3-32B-AWQ" \
      --tensor-parallel-size 2 \
      --port 5000 \
      --host 0.0.0.0 \
      --gpu-memory-utilization 0.90 \
      --served-model-name "localmodel" \
      --disable-log-requests \
      --disable-custom-all-reduce \
      --enable-prefix-caching \
      --guided-decoding-backend "xgrammar" \
      --chat-template /home/user/vllm/qwen3_nonthinking.jinja

  2. Configure in MAESTRO:

    • Provider: Custom Provider
    • API Key: (use dummy unless you configured authentication)
    • Base URL: http://192.168.xxx.xxx:5000/v1/
    • Click "Test" to load available model (will show as localmodel)

Testing Your Configuration

Connection Test

  1. Enter your API credentials (API Key and Base URL)
  2. Click the "Test" button next to the API Key field
  3. Wait for verification (this fetches available models)
  4. Success will populate the model dropdowns

Model Selection

After successful connection test:

  1. Fast Model: Select from dropdown for rapid, simple tasks
  2. Mid Model: Select for balanced performance tasks
  3. Intelligent Model: Select for complex analysis (defaults to same as Mid if not set)
  4. Verifier Model: Select for fact-checking (defaults to same as Mid if not set)

Saving Configuration

  1. After selecting all models, click "Save & Close"
  2. Settings are saved per user
  3. Changes take effect immediately for new research sessions

Troubleshooting Connection Issues

"Connection failed" error:

  • Verify API key is correct and active
  • Check internet connection
  • Ensure billing is set up with provider
  • For custom endpoints, verify server is running

"Models not loading":

  • Wait a moment and try refreshing
  • Check if API key has correct permissions
  • Verify base URL format (should end with /v1/ for OpenAI-compatible APIs)

Best Practices

Model Selection

  1. Match complexity to task

    • Don't use GPT-5-chat for simple formatting
    • Don't use GPT-5-nano for complex analysis

  2. Consider cost

    • Fast models for high-volume tasks
    • Intelligent models for critical analysis

  3. Test different combinations

    • Find the optimal balance for your use case

Performance Optimization

  1. Use local models for:

    • Sensitive data
    • High-volume processing
    • Offline operation

  2. Use cloud models for:

    • Best quality
    • Latest capabilities
    • No infrastructure management

Cost Management

Monitoring Usage

  • Track usage through provider dashboards
  • Monitor job costs in UI
  • Set up billing alerts
  • Monitor token consumption in MAESTRO logs

Common Configurations

Budget-Conscious Setup

  • All models: OpenRouter with open models (Mistral, Llama)
  • Cost: Very low

Quality-Focused Setup

  • Fast: GPT-5-nano or GPT-4o-mini or Claude Haiku
  • Mid: GPT-5-mini or Claude Sonnet
  • Intelligent: GPT-5-chat or Claude Opus
  • Verifier: same as Intelligent

Privacy-Focused Setup

  • All models: Local LLMs via VLLM or SGLang with structured generation
  • No external API calls

Hybrid Setup

  • Fast/Mid: Local models
  • Intelligent: Cloud model for complex tasks
  • Balance of privacy and capability

Provider Comparison

Provider Pros Cons Best For
OpenRouter 100+ models, unified billing Adds small overhead Flexibility
OpenAI Direct access, latest models Single vendor GPT users
Local LLMs Privacy, no costs Requires hardware Sensitive data

Troubleshooting

API Key Issues

Invalid API key:

  • Double-check key from provider dashboard
  • Ensure no extra spaces
  • Verify key is active

Rate limiting:

  • Check provider rate limits
  • Implement retry logic
  • Consider upgrading plan

Model Selection Issues

Model not available:

  • Verify model name spelling
  • Check if model is available in your region
  • Ensure API key has access to model

Wrong model behavior:

  • Verify correct model selected
  • Check model parameters
  • Test with different model
